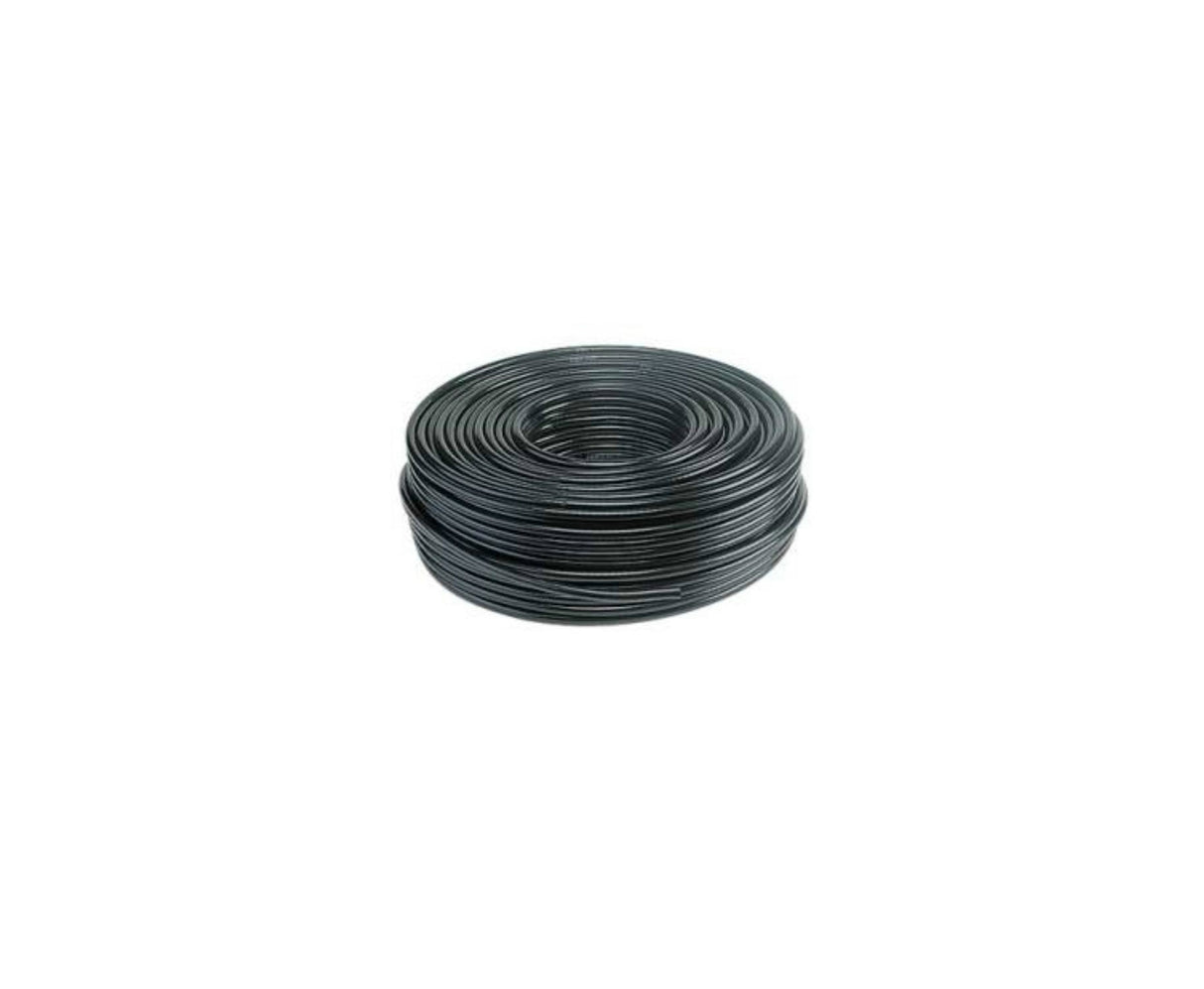

CB Antenna Coax Cable RG 58 50 ohm meters cut to
The price is 1 m.
The CB Antenna Coax Cable RG 58 is a reliable and versatile product that is ideal for radio communication systems. With an impedance of 50 ohm, it fits perfectly into the needs of CB radios and guarantees a stable, smooth signaling. The design per meter allows you to obtain exactly as many cables as you need, whether it is smaller or larger systems.
The smooth copper driver of the cable (19 x 0.18 mm) provides excellent electrical properties while minimizing signal loss. The low -density polyethylene dielectric (diameter 2.95 ± 0.10 mm) provides a stable insulation, which contributes to the purity of the signal and reliable operation. The tinned copper external driver provides tight shading with 75%coverage, which effectively reduces interference and guarantees smooth communication even in a disturbing environment.
The cable has a durable non-polluting polyvinyl chloride mantle (diameter 5.00 ± 0.10 mm) to protect the internal elements from mechanical injuries and weather effects. The black color (RAL 9004) provides a discrete look that fits almost any application environment. The temperature range of the cable is between -30 ° C and +70 ° C, thus reliably performing in extreme conditions.
The performance of the coaxial cable is particularly outstanding as it minimizes noise and sign loss at different frequencies. The noise cancellation values are as follows (db/100m):
- 5 MHz: 2.7 pcs
- 10 MHz: 4.1 pcs
- 50 MHz: 9.7 pcs
- 100 MHz: 14.0 pcs
- 200 MHz: 20.5 pcs
- 400 MHz: 30.2 pcs
- 500 MHz: 34.5 pcs
- 600 MHz: 38.3 pcs
- 800 MHz: 45.5 pcs
- 1000 MHz: 52.3 pcs
The 100 PF/m capacity and the 66%speed share further strengthen the stable and reliable signaling capabilities of the cable. The internal driver has a resistance of only 36.5 ohm/km, which guarantees minimal energy loss, especially when using longer sections.
This coaxial cable is the perfect choice for connecting CB radios, antennas, satellite systems and other radio frequency equipment. The durable design and excellent electrical properties allow them to be suitable for both indoor and outdoor use. Whether it is professional use or hobby goals, this cable meets all needs. Quality material use, precise design and extensive compatibility ensure that your system is always stable and reliable. Choose this cable if it is important to you clean signaling and long -term reliability.
