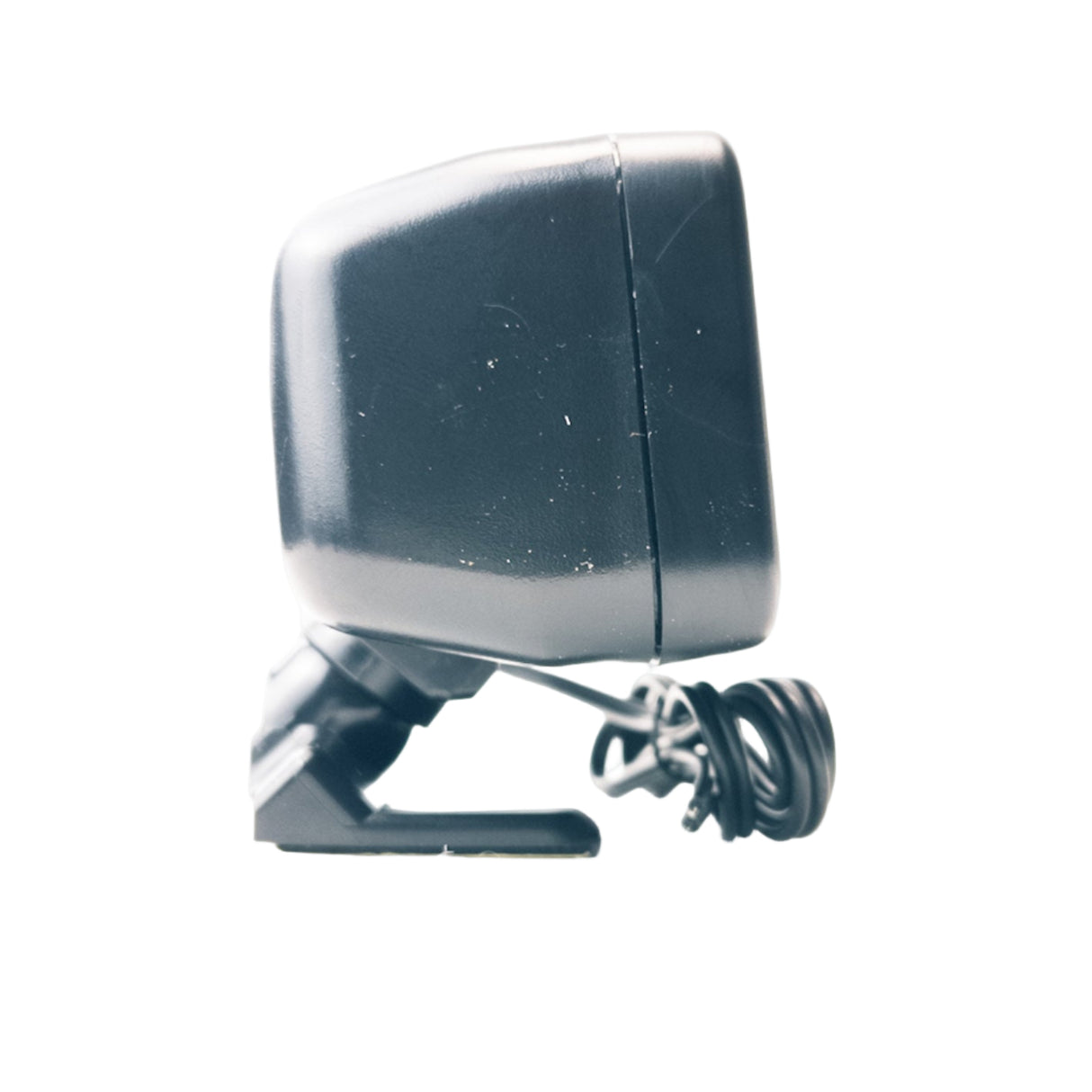

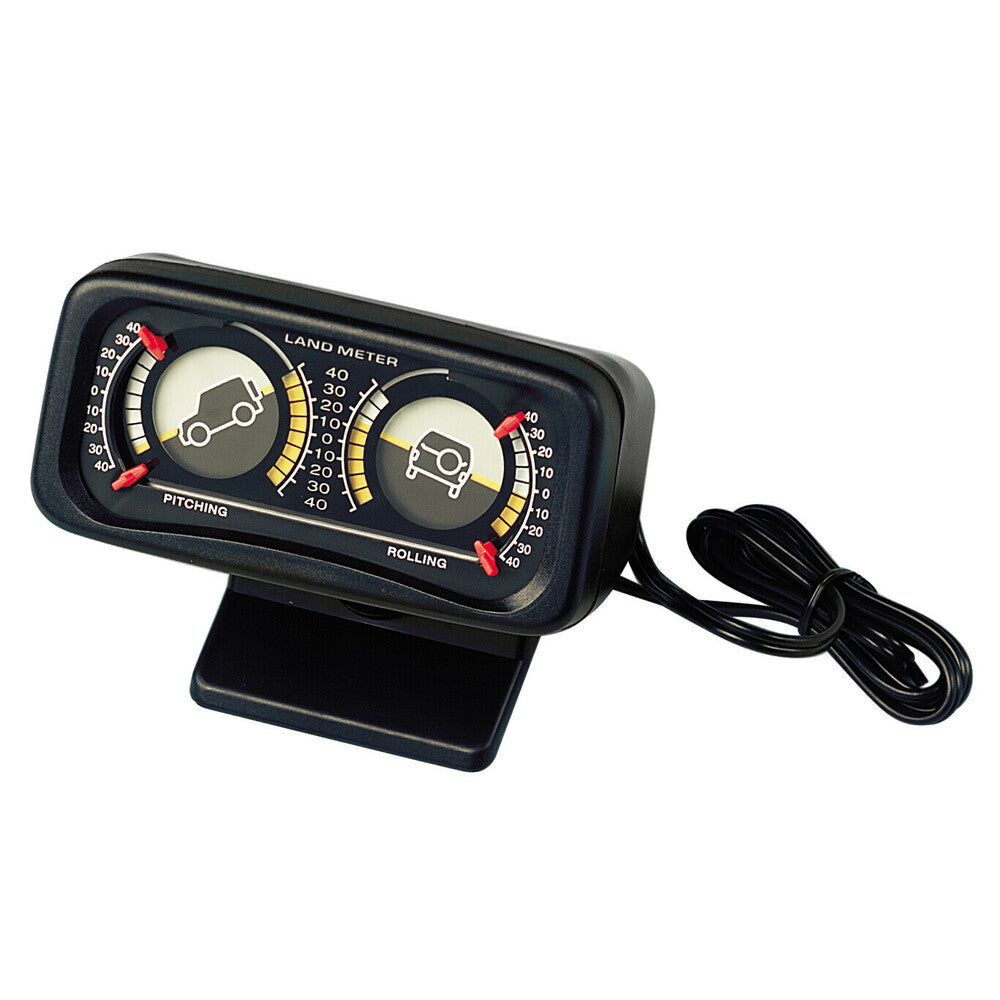

Lampa Inclinometer – Increases driving safety on steep or uneven terrain, with amber backlight for clear night reading

Lampa's practical, dual-function incline and tilt meter allows for precise monitoring of your vehicle's lateral and longitudinal tilt. The scales display the vehicle's position in degrees, enabling the driver to react quickly and easily to changing terrain conditions. The mechanical design ensures stable and easily readable values even while driving. The built-in amber backlight provides excellent visibility even in low light conditions. Its compact size and easy placement make it suitable for both passenger cars and off-road vehicles.

Installation of the Inclinometer is simple, as the package includes a mounting bracket or adhesive surface, allowing it to be securely fastened to the dashboard. After cleaning the surface, the device can be accurately adjusted so that the scales properly display the tilt values. During mechanical fastening, it is important to ensure the device is level, otherwise the readings may be distorted. Secure fastening prevents displacement due to vibration, which is especially important off-road. When choosing a mounting location, air bag zones and hidden wiring harnesses should be avoided. This paragraph describes the installation process for the inclinometer.

The Inclinometer is suitable for 12V electrical systems and can be connected immediately with the included electrical connection cables. The red wire connects to the power supply for the backlight, while the black wire provides the ground. The backlight can be wired to ignition control, so it only illuminates when the vehicle is in operation. For secure connection, it is recommended to connect the wires to a protected, clean circuit. During use, the scales provide clear visual information on the vehicle's tilt, enhancing safety on steep and uncertain terrain.

User Manual:

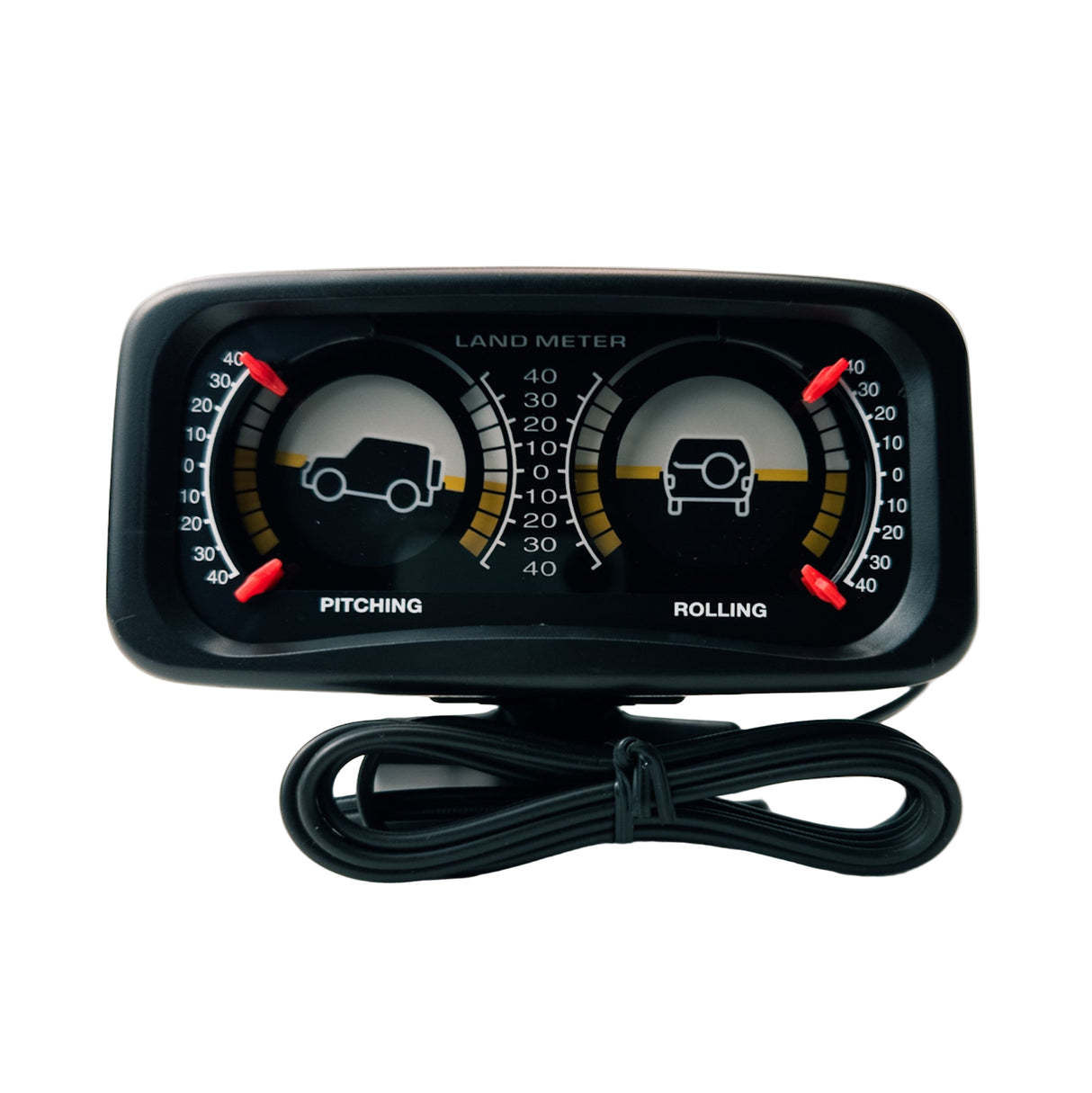

The instrument indicates the vehicle's pitching (forward-backward) and rolling (sideways) tilt in degrees. The scales continuously show the vehicle's position under varying terrain conditions and can be read with a quick glance while driving.

Package Contents:
Inclinometer with two scales, mounting bracket or adhesive surface, electrical connection cables, factory markings, and pictogram instructions.

Mechanical Mounting of the Instrument:

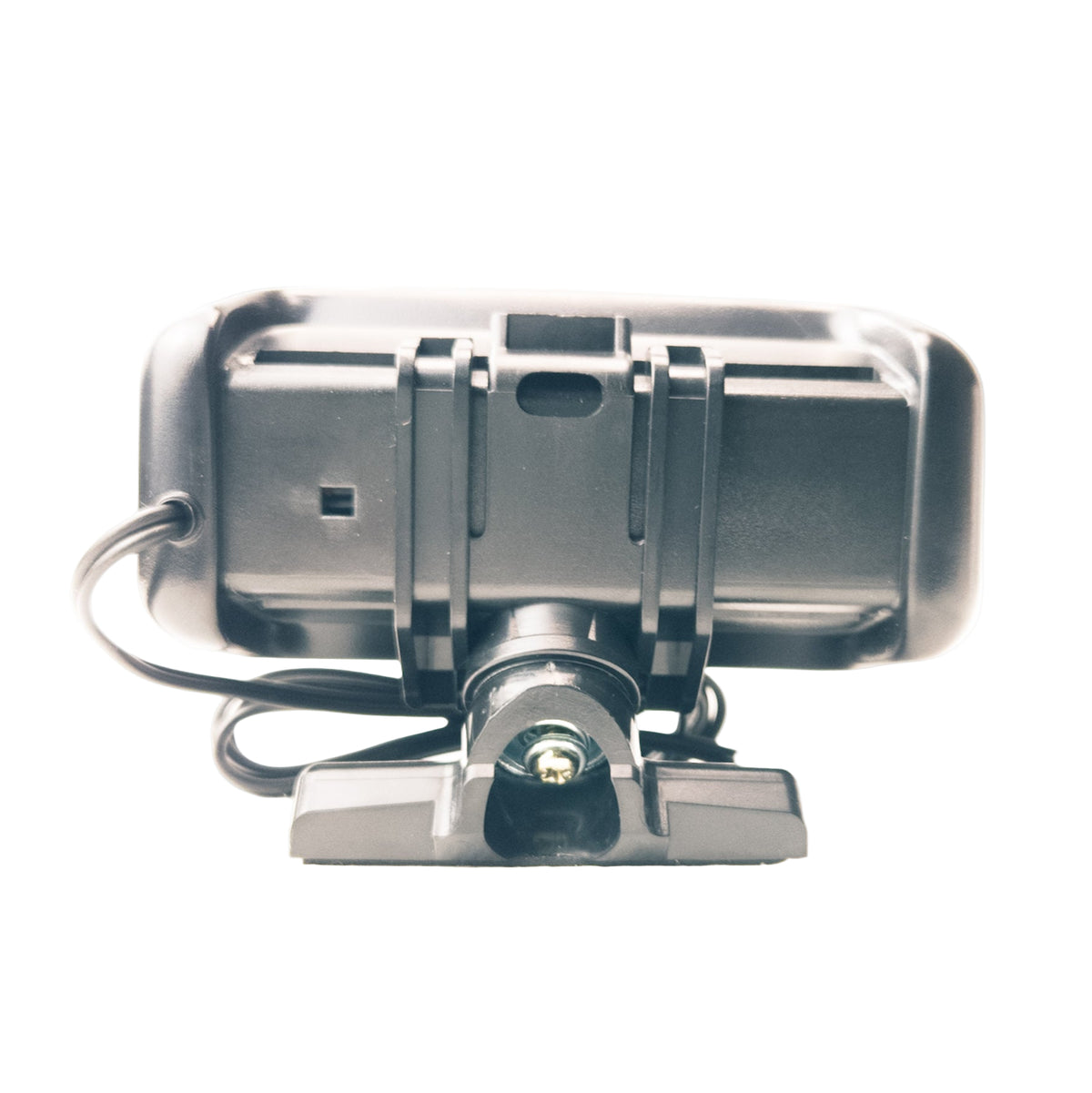

Can be mounted with adhesive or a screw-on base bracket. The instrument must be set in a horizontal position. Avoid airbag areas and hidden wiring during mounting.

Electrical Connection (12 V):
Red wire: +12 V backlight. Black wire: ground (–). The backlight can be connected to the ignition or the dashboard light circuit.

Use Off-Road / While Driving:
The instrument provides visual information about the vehicle's position on inclines, declines, or uneven surfaces. The displayed values help the driver maintain safe speed and direction.
