Flashing lamp light bridges with yellow LED controller 12/24V

There are 2 types of light bridges to choose from 162W or 180W

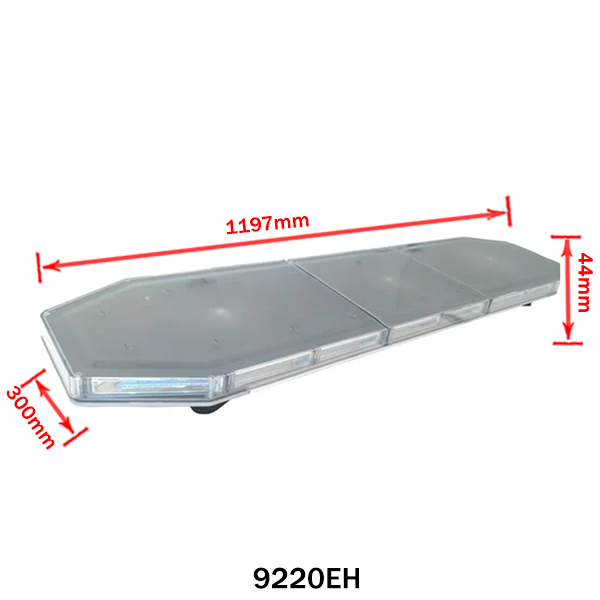

162W

This professional LED light bridge is an ideal choice for trucks, trucks and other commercial vehicles. The high brightness of the 162 1W LED ensures outstanding visibility in any weather conditions. The 1200 mm Light Bridge has 29 different flashing modes that you can easily adjust with the control system.

The fixation is fast and stable thanks to the two consoles attached and the mounting hoofs. Legs with rubber trips protect the vehicle's surface from injury. The light bridge is easy to mount and placed in the center provides optimum operation. In addition, interchangeable LED modules simplify maintenance.

The IP67 water resistance rating allows you to operate flawlessly under extreme weather conditions. The operating temperature range ranges from -30 ° C to +60 ° C, so it is reliable under extreme conditions. The 3.3 meter cable provides flexible placement.

The product meets all regulatory requirements, certificates: E9 10r-0516150 and YL TA1 E9 00 6125. The product size is 1197 x 300 x 44 mm and the console height is 90 mm. Its power consumption is 12V 6A, which allows efficient operation.

This LED light bridge offers a reliable and lasting solution to any situation where high brightness and security are a highlight.

Main qualities

• Tension: 12-24V dc
• Number of LEDs: 162 pcs 1W LED
• Number of blinking modes: 29
• Size: 1197 x 300 x 44 mm
• Console height: 90 mm
• Power consumption: 12V on 6a
• Waterproof: IP67 rating
• Certificates: E9 10R-0516150, YL TA1 E9 00 6125
• Operating temperature: From -30 ° C to +60 ° C
• Cable length: 3.3 meters
• Fixing: 2 pcs consoles with 2 pcs fasteners
• Easy to replace LED modules

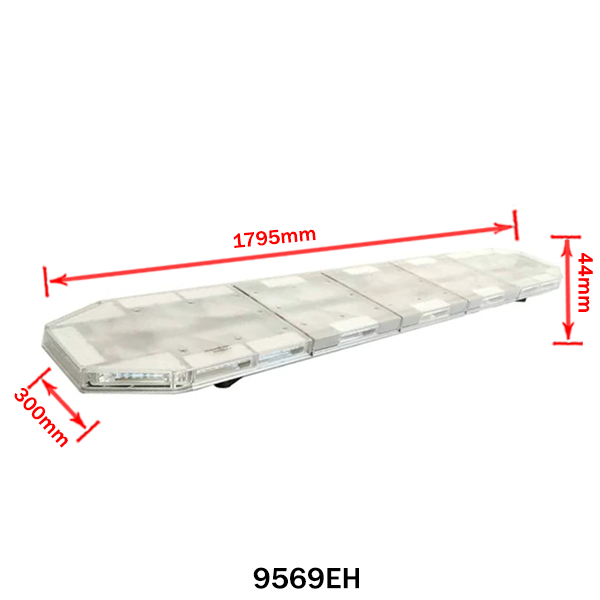

180W

This 1800 mm long LED light bridge is an ideal choice for vehicles that require great visibility and reliability. The Light Bridge operates with DC 12-24V, so it can be widely used on various vehicle types such as trucks, trucks or rescue vehicles. The 29 different blinking modes allow you to customize the light effects, thus always providing a warning to the current situation.

Replaceable LED modules provide quick and easy maintenance, while the IP67 water resistance certificate guarantees lasting performance even in extreme weather conditions. The operating temperature range of the light bridge ranges from -30 ° C to +60 ° C, so it is reliable under extreme conditions. The current consumption is 6.7A, which provides excellent efficiency.

Four consoles are attached to secure that ensure stable and durable equipment. When placed in the center and fastened with screws, you can access the optimum placement. The 3.5 -meter cable is sufficient to connect the vehicle's cigar lighter flexibly.

In addition to its modern and elegant appearance, the light bridge has E10 and E65 certificates, which ensures that it is suitable for road use. The product size is 1795 x 300 x 44 mm and the console has a height of 90 mm.

This light bridge is the perfect choice for increasing safety and visibility, whatever your vehicle.

Main qualities

• Tension: DC 12-24V
• Number of LEDs: Easy -to -replace modules
• Number of blinking modes: 29
• Size: 1795 x 300 x 44 mm
• Console height: 90 mm
• Power consumption: 12V on 6.7a
• Waterproof: IP67
• Certificates: E10, E65
• Operating temperature: From -30 ° C to +60 ° C
• Cable length: 3.5 meters
• Fixing: With 4 brackets with screw fixing
• Use: Stable fixing on top of vehicles with screws

Quantitative unit: pcs

English Name: Blaze Bar LED 12/24V Amber 162W Long
