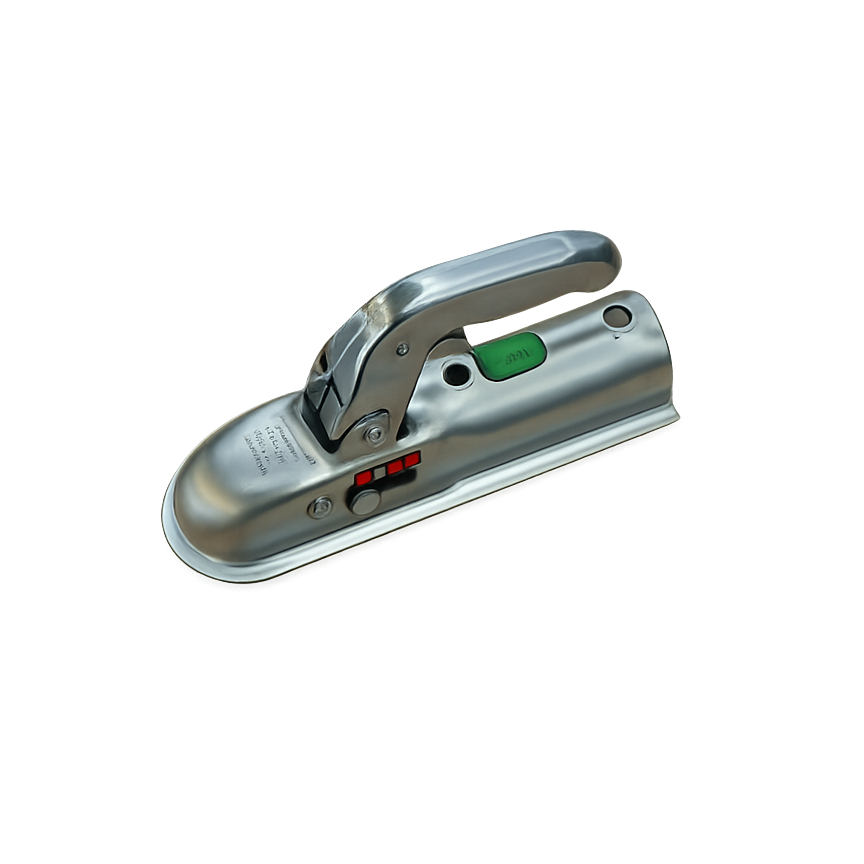

KNOTT Coupling Head – Maximum Safety and Fast, Secure Attachment

The KNOTT coupling head is an ideal choice for those who refuse to compromise on safety. Its robust steel plate construction and precise German manufacturing guarantee a stable connection to a 50 mm tow ball. The practical operating lever allows for quick and easy attachment, saving you time with every use. The integrated safety mechanism prevents accidental detachment, allowing you to travel with peace of mind even under heavy loads. If you are looking for a reliable and durable solution, this coupling head will prove itself over the long term.

One of the greatest advantages of the KNOTT coupling head is its integrated wear and connection indicator, which provides immediate feedback on correct attachment. A green indicator clearly shows that the connection is secure and ready for use. This feature significantly reduces the risk of incorrect attachment, thereby increasing road safety. The two upper mounting holes ensure a stable fit to the drawbar, so the structure remains reliable even during intensive use. The design of the coupling head supports both everyday and professional use.

The KNOTT coupling head is not only safe but also an economical choice in the long run. The galvanized surface effectively protects against corrosion, making it resistant to weather conditions and continuous wear and tear. With regular cleaning and minimal maintenance, it will maintain its excellent performance for years. The durable construction and 1400 kg load capacity ensure that it performs well even under tough conditions. This coupling head is designed for those who seek a durable, safe, and trouble-free solution.

• Quick attachment: simple operating lever for fast and secure fixing
• Maximum safety: manual locking mechanism against accidental release
• Visualized check: wear indicator for correct connection feedback
• Stable attachment: two-point mounting for a secure fit
• Long lifespan: galvanized surface for corrosion protection
• For professional use: high load capacity, reliable operation

Technical Data

• Manufacturer: KNOTT
• Compatibility: 50 mm tow ball
• Material: steel plate
• Surface treatment: galvanized coating
• Mounting: 2 upper holes
• Hole spacing: 90 mm
• Hole diameter: 12 mm
• Overall length: 265 mm
• Maximum load capacity: 1400 kg
• Extra: wear indicator system

User Manual

• Step 1: pull up operating lever
• Step 2: place coupling head onto the tow ball
• Step 3: push down lever to secure
• Step 4: check wear indicator (green signal)
• Important: always check for stable attachment before starting off
• Maintenance: regular cleaning and lubrication
