3m Diamond Grade 983 Reflective Ribbon 5 cm wide, E marked, red, yellow, white, trucks, trailers to contour nomination

The above price is 1 meter!

• White: 983-10 dg3

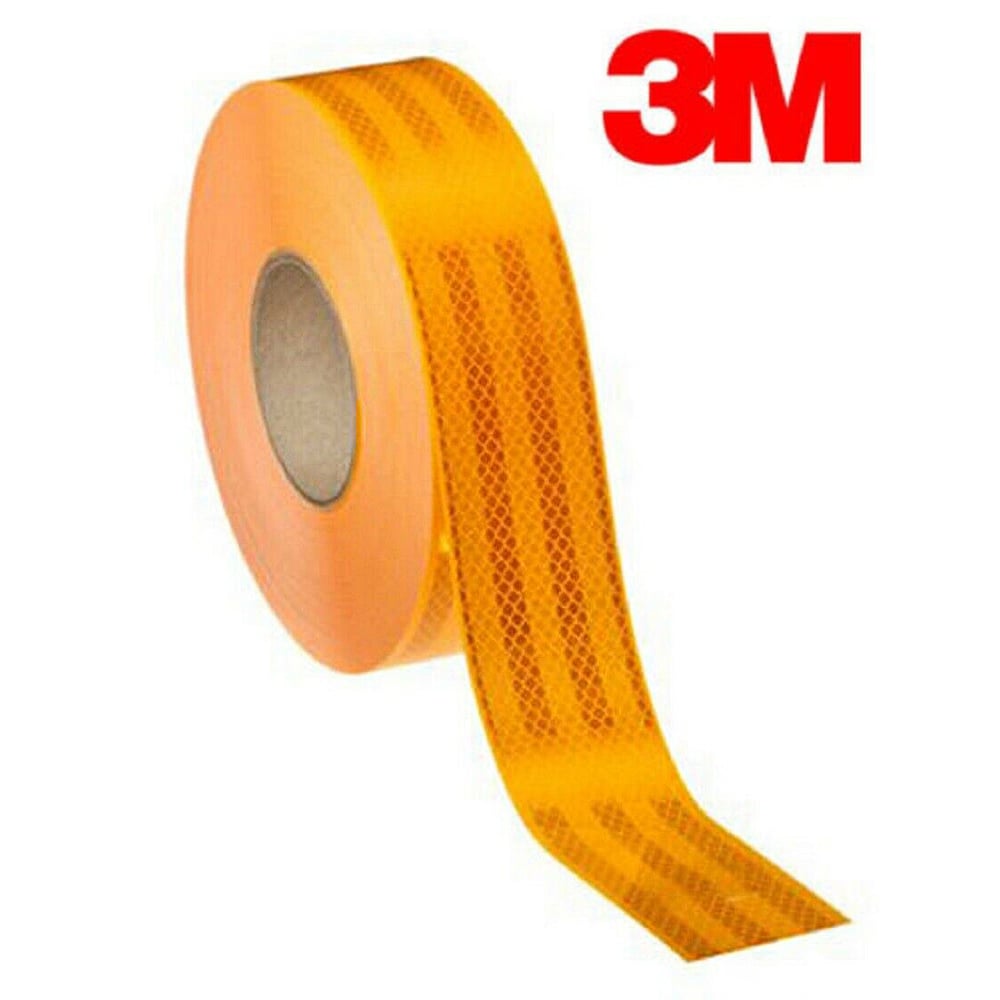

• yellow: 983-71 dg3

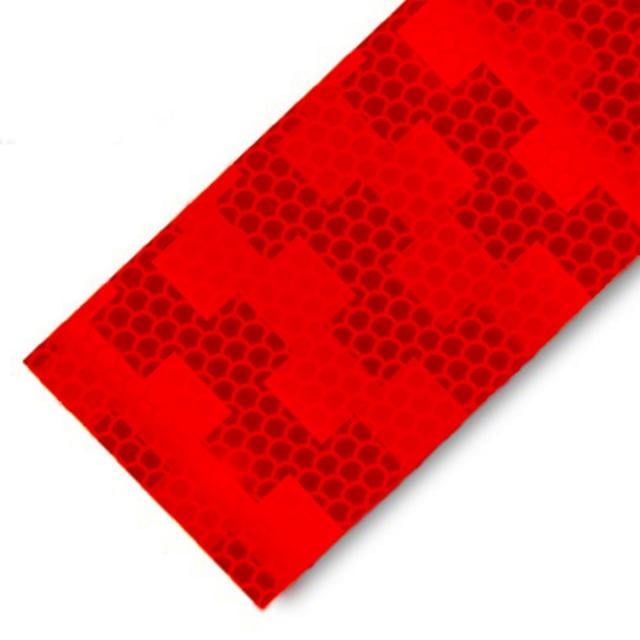

• red: 983-72 dg3


The 3M ™ Diamond Grade ™ 983-series contour foil is a high-bright, prizmaler-structured foil tape that is on a transparent resin bed and a synthetic, nailed carrier and has an adhesive layer and protective foil on the back.

This reflective tape has been designed for the increased visibility and easier identification of the side of the rigid walls and their superstructures.

Pursuant to the European Union 2007/35/EC, a reflective cinema shall be provided from July 11, 2011 with a reflector over a newly marketed 7.5t lorry which is more than 6.00 meters long and more than 2.10 meters wide (N2, N3, O3, O4 vehicles).

Main features:

• Long -term reflective strip with microprism

• Available in a strip of 55mm width in accordance with the requirements of UN/ECE 104

• Length: cut to size, full roll length of 45 m

• For rigid -walled vehicles

• Excellent angularity in both horizontal and vertical direction

• Easy -to -install

• The foil resists fuel evaporation and occasional outflow

• Situated (if they want to use rear warning signals according to ECE 70.01)

Placement:

• Check the temperature of the carrier surface using an infrared thermometer

• Do not overlap the reflector just

• Foil layout below buckles and straps is not recommended

• Remove the pre -masking foil after the application by closing an angle of 180 °


Chemical resistance:

• Resisting weak acid, alkaline and saline

• Excellent waterproof

• Resistance

Cleaning and maintenance:

• Warm water hand washing using sponge, wipe or soft bristle brush.
• The cleaning rag should not be rubbed with a rubbing surface and be moistened with a slightly solvent washing fluid with a pH of 3 to 11.
• After cleaning, rinse the surface thoroughly.

• Use a wipes that have been dampened with heptane or alcoholic solvent to remove fat, oil or tar.
• Wash with detergent then water and finally rinse thoroughly.

When using a high pressure cleaning device, follow the following:

• Max. 80 bar pressure

• Max. 60 ° C

• Leave a distance of at least 1 meter between the cleaning head and the foil surface

• The position of the cleaning wand and jet should be perpendicular to the surface of the foil or is 15 ° smaller

• Use a wide -patterned syringe

Before use, the user must determine the suitability of the product for a given use.

All the risk and responsibilities of the application are subject to the user.

For more information on the outline of truck, trucks, saddle fittings hungarokamion.hu page.
